An all-new Accelerator Position Sensor with Grip (APSG) ride-by-wire system- featuring Yamaha’s Chip Controlled Throttle (YCC-T) - eliminates throttle cables and reduces weight while providing smoother throttle operation.

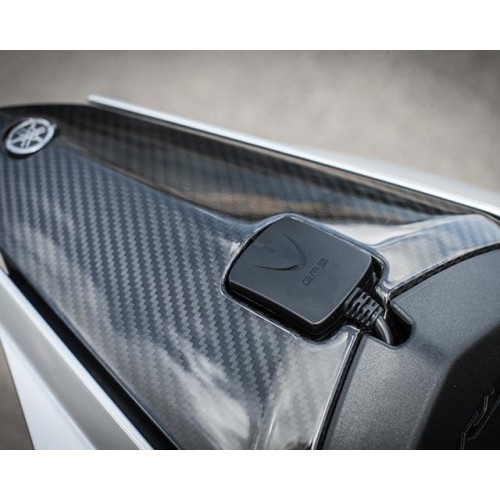

A Communication Control Unit (CCU) enables checks of the various forms of machine information and simplifies the setting process in order to heighten the instrument panel’s function as a rider-machine interface. Comprised of the CCU and a GPS antenna, running data can be recorded via a data logger, and with the GPS function, the system also enables automatic lap time recording on circuit course.
New lightweight, compact LED twin headlights for both the low and high beam, combined with the redesigned body styling to create a new front face symbolising the next-generation of R-Series design.

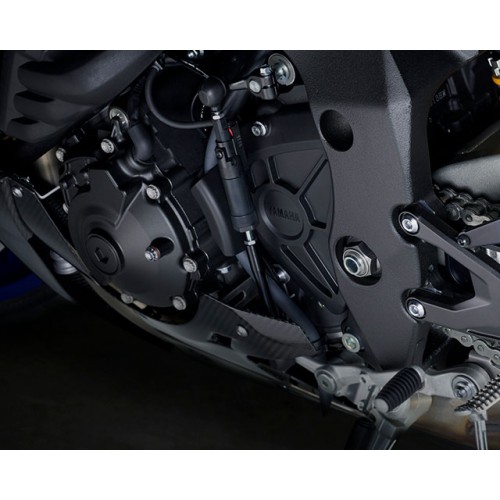

The YZF-R1M also comes equipped with a new Quick Shift System that gives faster gear changing. This system instantly cancels drive torque when an upshift is detected - enabling full throttle clutchless upshifts for outstanding acceleration through the close ratio 6-speed transmission.

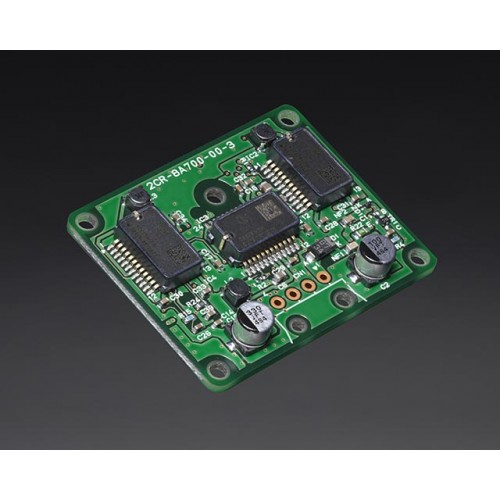

The 6-axis Inertial Measurement Unit (IMU) consists of a gyro sensor (angular velocity sensor) that constantly measures machine pitch, roll and yaw, and a G-sensor (accelerometer) that measures acceleration in the forward-backward, up-down and right-left directions. This technology makes possible the class-leading array of rider aids includes lean sensitive Traction Control System (TCS), Slide Control System (SCS) as well as a front wheel lift control system (LIF) and Brake Control system (BC).

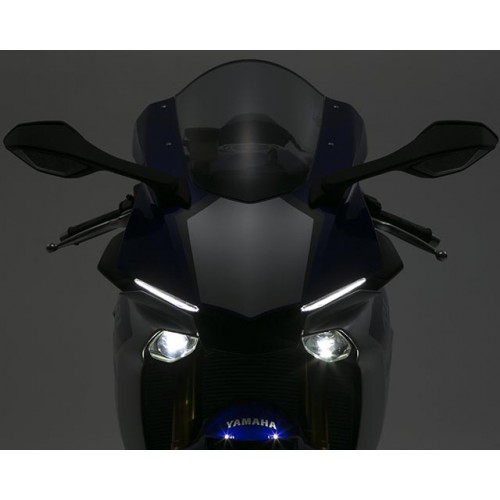

An LED headlight and LED position lights are adopted for their advantages of low electricity consumption, light weight and high luminosity. When the ignition is turned on, the high-intensity LED position lights come on almost instantly. The straight-line, sharp illumination gives the R1 a distinctive and original frontal expression even in the dark.

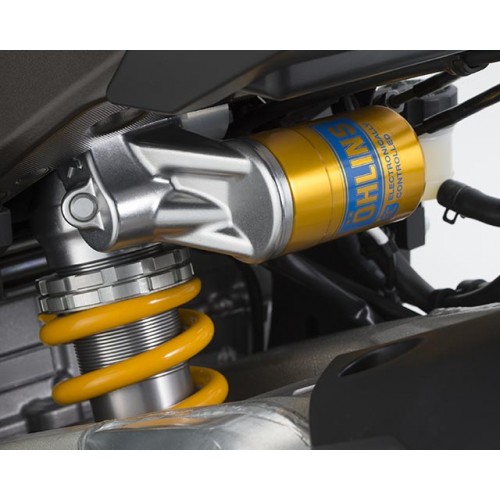

The revised Electronic Racing Suspension (ERS) is the most sophisticated system ever developed by Öhlins for a production motorcycle. Its advanced new software gives a higher degree of braking, acceleration and cornering support with improved front-end feel – and a new interface makes suspension set-up quick and easy.

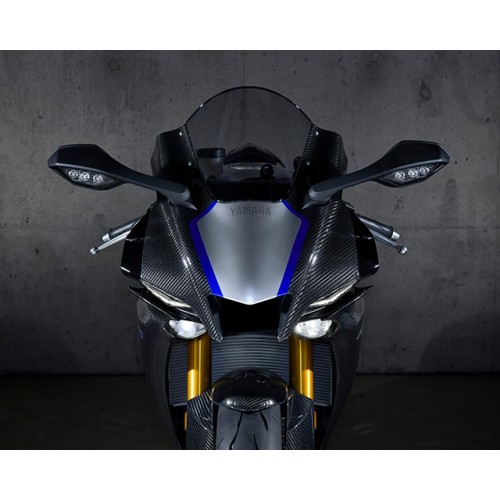

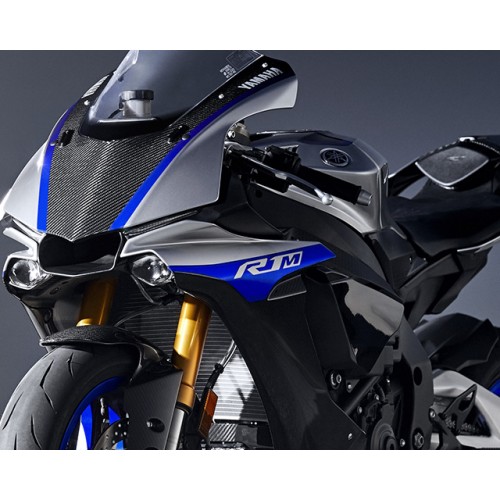

With its central forced air intake and high screen, the R1M's lightweight carbon bodywork has an unmistakable race bike silhouette. Compact new LED headlights are 'hidden' either side of the air intake to emphasize the race DNA, while twin LED position lights give this new superbike a truly unique face.

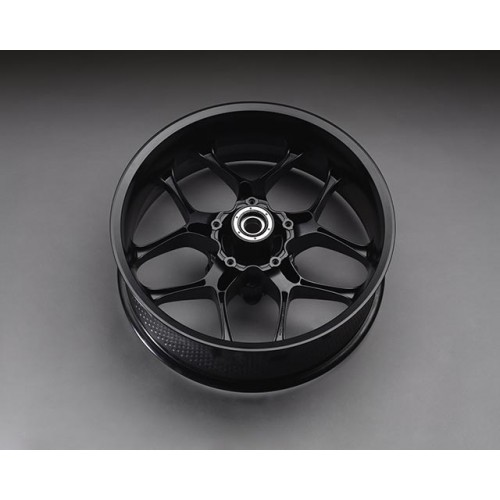

To bring out the high performance of the lightweight body, the first cast magnesium wheels ever on a mass-production model are adopted.

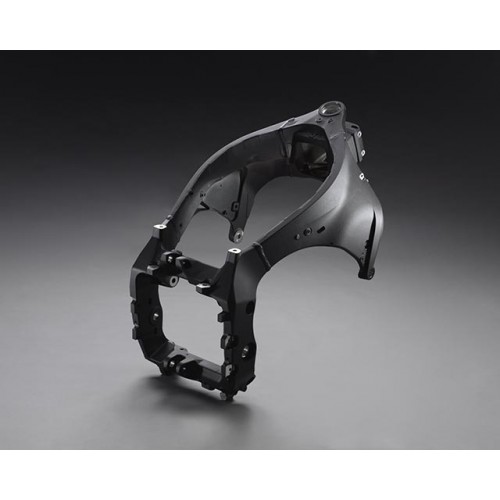

The aluminium Deltabox frame features a long upward-truss type swingarm and magnesium rear frame, underlining the R1's strong YZR-M1 racebike heritage. The short 1,405mm wheelbase chassis and the R1M's low wet weight of just 200kg give the YZF-R1 a high level of agility and responsiveness for outstanding race and track performance.

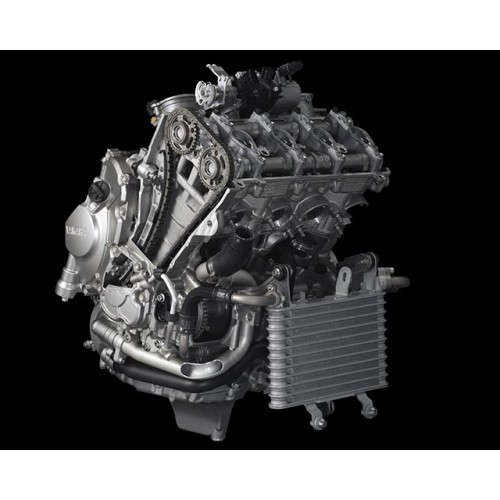

To achieve optimal performance the engine uses a high compression 01:01 PM cylinder head featuring a pent roof combustion chamber with large diameter intake and exhaust valves. And for instant response with high power and strong linear torque, the R1 is equipped with titanium con rods and forged aluminium pistons.

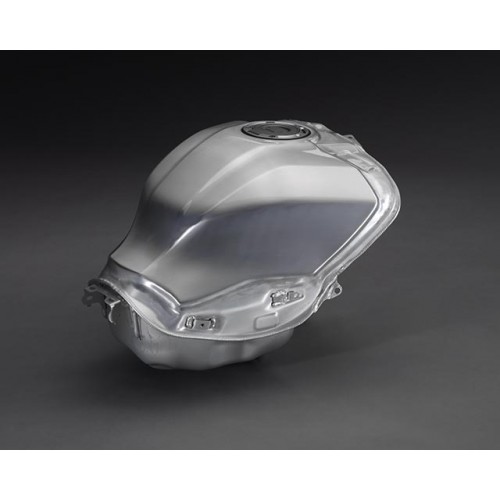

An aluminium fuel tank (17-litre capacity) designed to reduce weight and provide a wider range of riding position freedom has been adopted. The knee pocket area is deeply indented in a design well fitted for active riding.

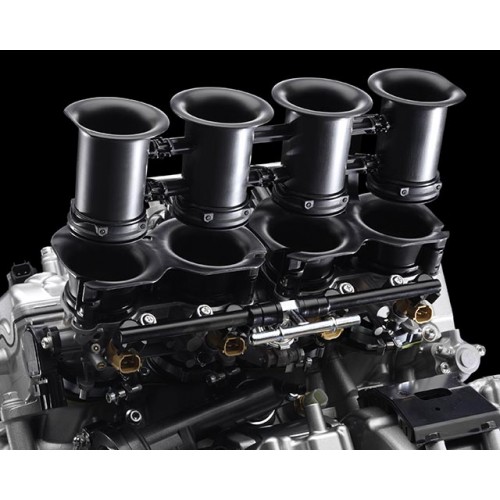

For optimal intake efficiency a YZR-M1-type central air inlet feeds a large capacity 10.5 litre airbox. Fresh air is force fed into the electronically activated Yamaha Chip Controlled Intake (YCC-I) funnels that adjust their length to match engine rpm for optimum power characteristics, to give high levels of useable performance.

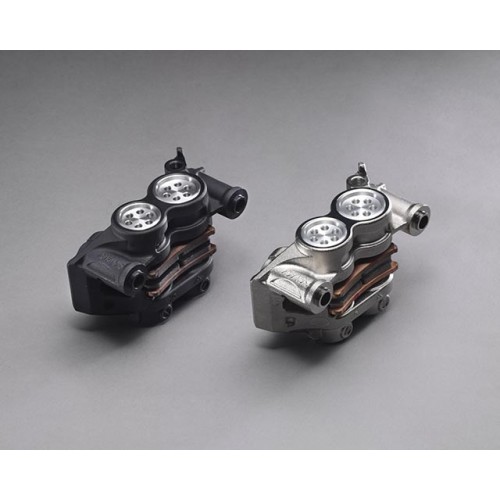

Both an Anti-lock Brake System (ABS) and Yamaha’s Unified Brake System are adopted. With the Unified Brake System, operating the front brake also generates corresponding brake pressure at the rear brake. The distribution of braking force is based on input from the IMU regarding the machine’s attitude and banking angle at the time of brake application.

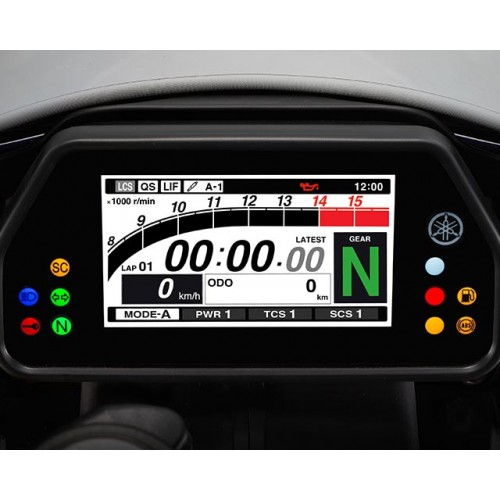

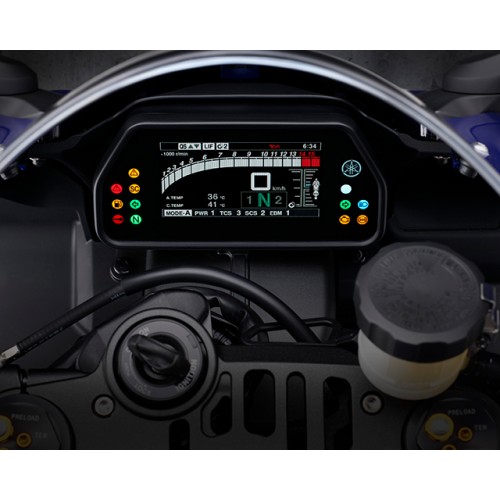

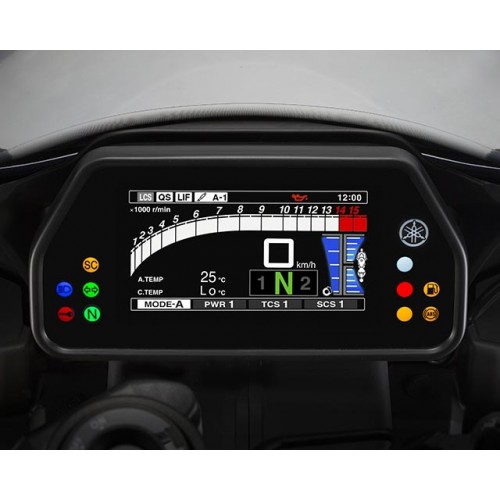

The race bred instrument panel has been designed with the concept of creating an effective rider-machine interface. All of the instrument function displays have been concentrated into a single 4.2-inch screen that adopts a fully transmissive Thin Film Transistor (TFT) liquid crystal display. For the display mode, there is also a choice between a Street mode with a priority on displaying information needed for riding on public roads, and a Track mode with a priority on information desired for racing or circuit riding.

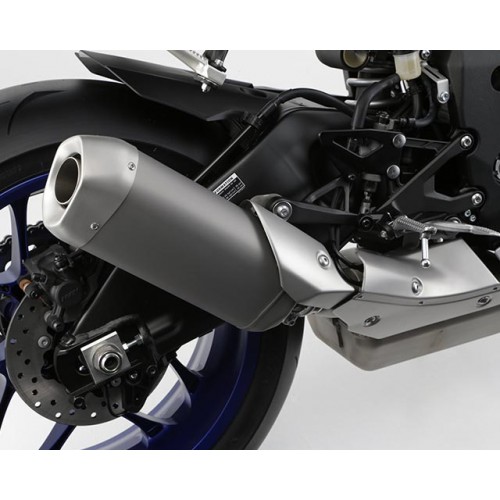

A 4-2-1 exhaust pipe and mid-ship muffler are adopted to ensure good exhaust efficiency and to contribute to mass centralisation at the same time. To reduce weight, titanium is used in these exhaust pipes and the muffler.

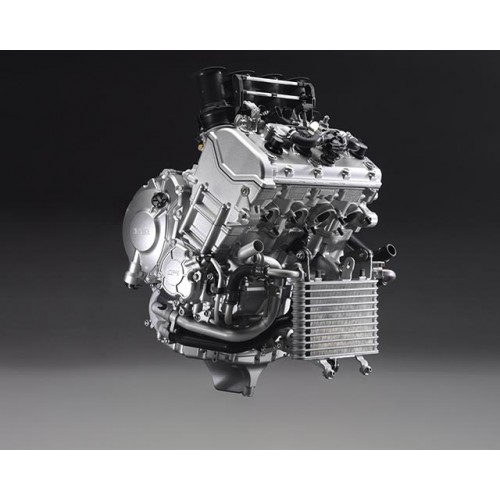

The R1 is powered by a 998cc crossplane 4 cylinder 4-valve engine that develops 200PS - without ram air pressurisation. Derived from our winning YZR-M1 MotoGP bike, its crossplane crankshaft gives an uneven 270° - 180° - 90° - 180° firing sequence for high levels of linear torque.
Equipped with a banking angle sensitive rear wheel Slide Control System (SCS) and Traction Control System (TCS) - as well as a Front LIFt control system (LIF) in addition to a Launch Control System (LCS) and Quick Shift System (QSS), the R1M's electronic control technology enables every rider to attain their full potential on the track.

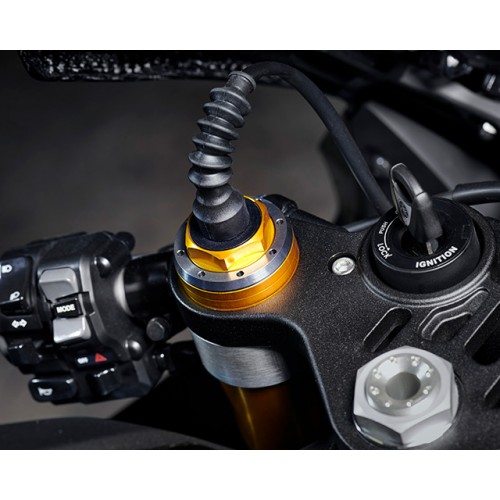

Öhlins Electronic Racing Suspension (ERS) on the YZF-R1M features new NPX pressurised fork legs, along with a revised rear shock. Everything is adjustable through the YRC settings and Y-TRAC on the TFT dash or via a smartphone.

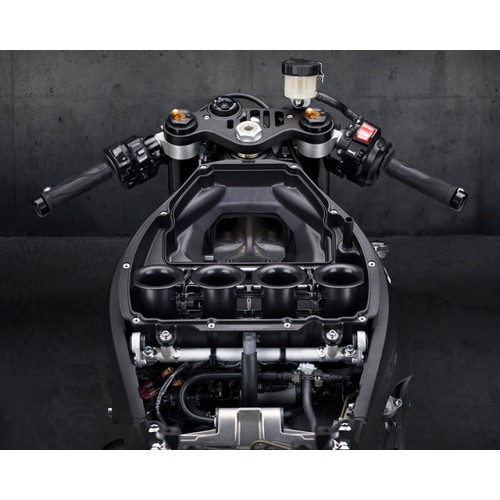

The YZF-R1 come equipped with the next generation of Yamaha’s unique 998cc inline four-cylinder crossplane crankshaft engine for refined performance. Returning features such as titanium fracture-split connecting rods and offset cylinders contribute to a responsive and potent character, while the cylinder head, fuel injectors, finger-follower rocker arms, and camshaft profiles are new for 2020.

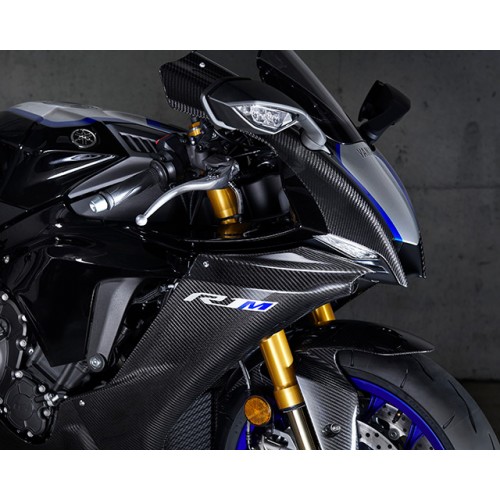

Redesigned bodywork contributes to higher-quality performance and a more comfortable rider fit. The new design creates a 5.3% increase in aerodynamic efficiency while reducing wind noise and pressure on the rider when in a tucked position, and improved comfort comes from smoother side sections where the rider’s legs contact the bike. The 2020 YZF-R1M also receives a new carbon fibre tail cowl.

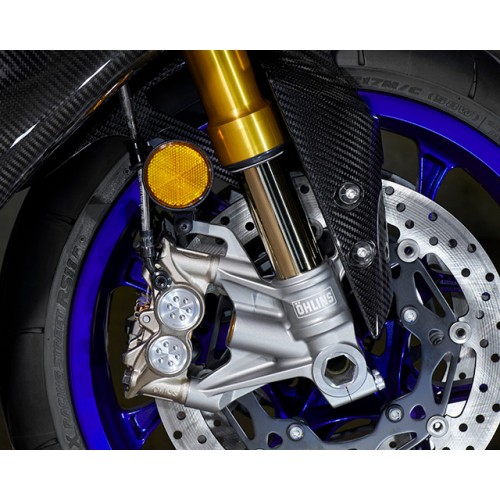

Technology is transforming the way we ride, and the latest YZF-R1 features no fewer than seven electronic control systems. Featuring two modes, the new Brake Control (BC) system analyses data such as lean angle and slipping acceleration and modulates hydraulic brake pressure to prevent wheel lock ups.

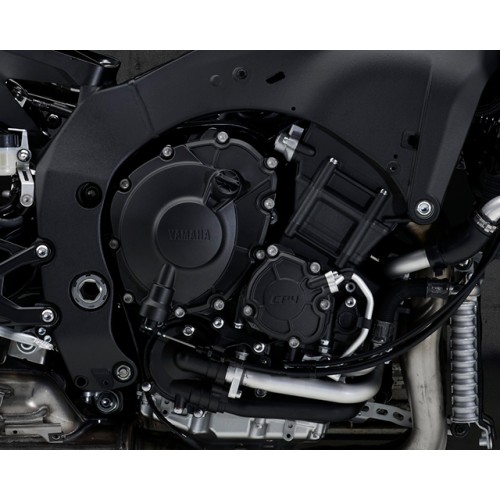

Control is everything when you're on the track, and the new Engine Brake Management (EBM) system allows you to adjust engine braking force. Using data from various sensors, the EBM adjusts throttle opening, ignition timing and fuel injection volume to give you a choice of three engine braking modes to suit different riding situations.
